3mm 7KN Figure 8 AC-O-07-500 ADSS Cable Clamp

Brand Name : Geto Telecom

Model Number : AC-O-07-500

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 100PCS

Price : 1.5USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000PCS/Days

Delivery Time : 15 days

Packaging Details : carton+woven bag+ Pallet

Product Name : Figre 8 Anchor Clamp

Breaking Force : 7KN

Cable Size : 3-7 mm

Application : Fixing Figure 8 Cable

Material : Aluminum + Zinc + Steel

Span Lenght : less than 100M

Weight : 0.2 KGS

Sample : Free sample available

Standard or Nonstandard : Standard

Customade : Available

Status : New

Contact Now

3-7mm 7KN Aluminum Figure 8 Anchor Clamp ADSS Cable Clamp

Description

Figure 8 anchor clamp (drop clamp) clamps are used for the dead-end of FTTH figure-8 cables with steel messenger deployed on distribution networks with spans up to 90m.

designed with an open, conical body, a zinc jaw and a flexible bail. During the cable pulling operation, the jaw clamps onto the messenger’s insulator so to fix in to the metal core.

Feature

1) Tool free installation.

2) UV protected aluminum and stainless steel material.

3) Used for the span less than 100 meters.

4) Available cable size ranges from 3-7mm to 6 -10mm.

5) All parts are resistant to corrosion, environmental effects.

6) Guarantee no cable damages or slipping.

7) Delivered with stainless steel cord.

Specification

Model Material Available Cable(mm)

Breaking Force(kn)
AC-0-07-500

Aluminum body+ zinc core + 304 steel bail

 3-7 7
AC-0-07-501

Aluminum body+ zinc core + 304 steel bail

 6-10 10

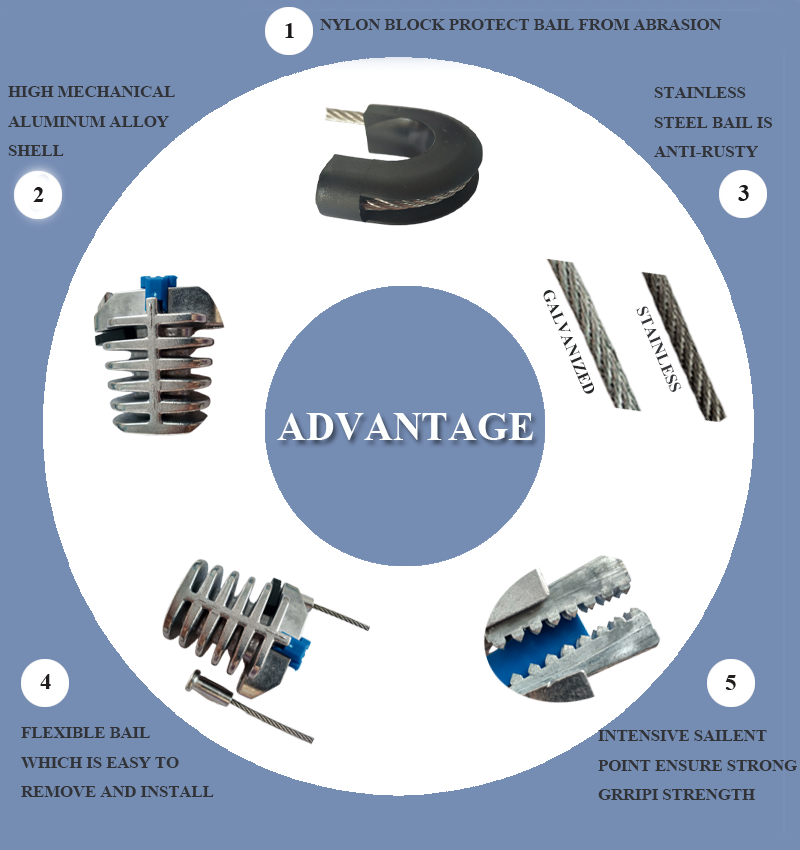

Advantage

3mm 7KN Figure 8 AC-O-07-500 ADSS Cable Clamp

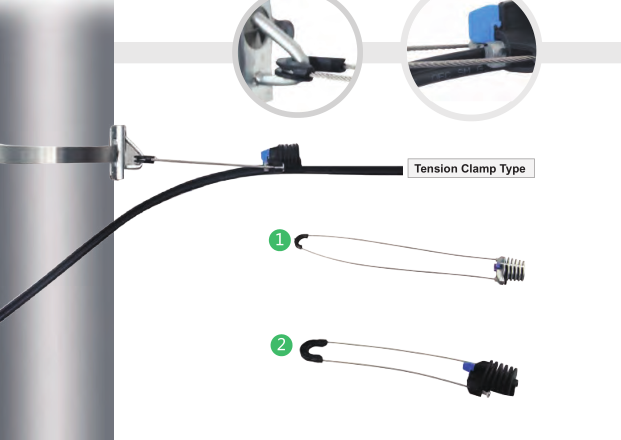

Application

Anchor clamp for figure-8 cables cable used for FTTH

3mm 7KN Figure 8 AC-O-07-500 ADSS Cable Clamp
